JLY630 series

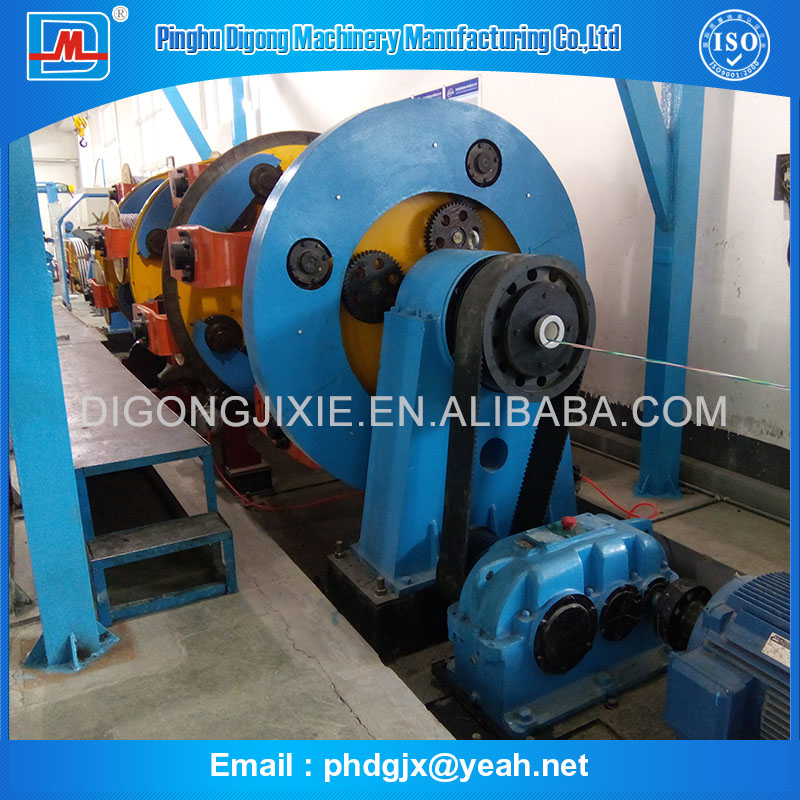

JLY710/8+16 high speed stranding machine (driven by independent motor)
Pinghu Digong
JLY710/8+16 high speed stranding machine
(driven by independent motor)
(click the picture, to see the video）
一、 The equipment usage：
Mainly used for stranding steel-cored aluminium wires, bare copper wires and bare aluminium wires.They may also be used for cable laying-up of rubber sheathed cables, multi-strand plastic cables and all kinds of communication cables.
二、 The equipment componse：
| 1 | Φ710 shaftless pay-off stand | 1 set |
| 2 | Φ710/8 B stranding cage（45KW motor control） | 1 set |
| 3 | Φ710/16 B stranding cage（75KW motor control） | 1 set |
| 4 | single wire die holder | 1 set |
| 5 | Φ400/2 semi-tangent taping head（11KW motor control） | 1 set |
| 6 | Φ400/6 common taping head（11KW motor control） | 1 set |
| 7 | horizontal meter counter | 1 set |
| 8 | Φ2000 single active dual wheel traction device（37KW motor control) | 1 set |
| 9 | Φ2000 take-up and traversing stand | 1 set |
| 10 | safety protection system and foundation bolt | 1 set |
| 11 | Electrical control system、PLC 、variable frequency motor | 1 set |
三、 Specifications：
1. Single wire diameter： (copper wire)：Φ1.0～Φ5.0mm ; (insulate wire)：Φ2.0～Φ8.0mm
2. Laying-up diameter： ≤45mm
3. Maximum rotating speed of 8 B stranding cage： 80r/min
4. 8 B laying-up pitch： 72～855mm
5. Maximum rotating speed of 16 B stranding cage： 71.4r/min
6. 16 B laying-up pitch： 87～1039mm
7. Maximum speed of taping head： 454.5 r/min
8. Taping pitch： 16～175mm
9. Linear speed： 6.23～31.13m/min
10.Specification of cradle in cage： PND630
11. Central pay-off reel： PND500～PND630
12.Take-up bobbin size： PN1250～PN2000
13. Central height： 1000mm
